1x10/100/1000Base-T to 2x1000Base-X Media Converter Card with Fiber Protection

Name: 1x101001000BaseT to 2x1000BaseX Media Converter Card with Fiber Protection
Brand: Fiberroad
Price: 1 USD

Brand Name : Fiberroad

Model Number : FR-6501

Certification : CE FCC RoHS

Place of Origin : China

MOQ : 1PC

Payment Terms : T/T, Western Union

Supply Ability : 2000pcs/month

Delivery Time : 2-3 workdays

Packaging Details : Standard export carton box

Price : Pls send request details

Wavelength : 850nm/1310nm/1550nm

TP Port : 1x10/100/1000M RJ45

Fiber Port : 2x1000Base-FX SFP

Frame Length : 9000Bytes

Operate Temp. : 0 ~ 50 ℃

Humidity : 5%~90%

Contact Now

1x10/100/1000Base-T to 2x1000Base-X Manageable Media Converter Card with Fiber Protection Switching

1 + 1 Fiber Optical Protection Converter Card (SFP to RJ45) can be used in 16-slot multifunctional management system, which is a Ethernet and SDH transmission equipment,support mutiple services including managed media converter card, OEO Converter card, 1+1 protection switching card, CWDM/DWDM MUX/DEMUX Card, etc. , supports protocols like SNMP, WEB, CONSOLE and TELNET , with a strong management function , and operate easily to meet different customer's requirement.

1x10/100/1000Base-T to 2x1000Base-X Media Converter Card with Fiber Protection

Applications

This is 1.25 Gb/s optical transmission equipment, can realize the optical line 1 + 1 redundancy protection in point-to-point mode, it can provide Optical Port automatic protection switching. To realized 1* 1000M or 1*100M Ethernet data to 2 Port 1.25 Gb/s optical Port for long distance transmission.
The equipment support 2 Fx port with a hot-swappable SFP slot;
This device uses a centralized management platform to monitor and manage the device, it is very convenient. Also supports SNMP.
This equipment is high integration, low power consumption, stable performance, easy installation, can be widely used in telecommunications, electricity and financial industries.

Functions

Access Type: 1.25G LAN / 1.25G WAN
Transmission Speed: 1.25Gb/s
SFP Module: Up To 80Km
Wavelength: 850nm/1310nm/1550nm
Support FX port with 1+1 automatic protection switching,switching time will less than 30ms
Rack-Mountable
Supports hot plugging
Support 16-slot Rack management
Powerful Network Management function (Web,SNMP,Console)
Full State Led display
Easy installation
Fiber Port Supports functions monitoring for SFP modules
Fiber Port Supports Standard SFP modules port
Ethernet Port Supports Ethernet frame length: 64~9600 bytes.
Ethernet Port Complies with IEEE802.3ah
Ethernet port Supporting 1000/100M, full duplex autosensing
Ethernet port support MDI/MDIX

Technical Information

Technical Parameter
Interface Type	1ETHERNET 1X10/100/1000M RJ45 to 2SFP 1000Base-FX (backup protect)
Access Type	1.25G LAN / 1.25G WAN
Standard	IEEE802.3, IEEE802.3u, IEEE802.3Z, IEEE802.3x
Transmission Distance	SFP module: up to 80km
Wavelength	850nm/1310nm/1550nm
Connector	LC
Network Management	Card type information • SFP fiber module detection • SFP fiber module DMI function (Temperature, Voltage, Optical power ) • Link status detector • Remote card's status monitor (only in pairs)
Standalone Power	AC 220V or DC48V
Rack-mountable Power	AC 85~220V or DC48V
Power Dissipation	Full-load <4W
Operating Temperature	0 ~ 50 ℃
Humidity	5%~90% (non-condensing)
Storage Temperature	-10~ 55 ℃
Dimension	156mm (W)×128mm(D)×32 mm(H) (standalone) 112.8mm (W)×77.2mm(D)×23 mm(H) (Card)

Ordering Information

P/N	Description	Remark

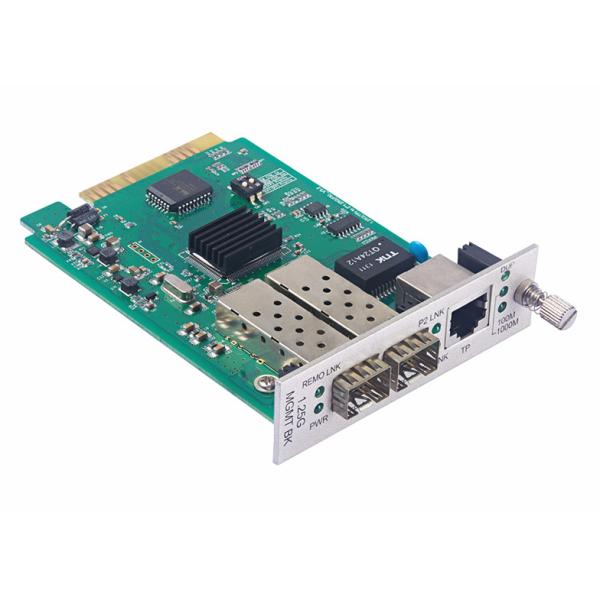

FR-6501	1+1 Fiber Protection Card	2×1.25G SFP to 10/100/1000M Tx

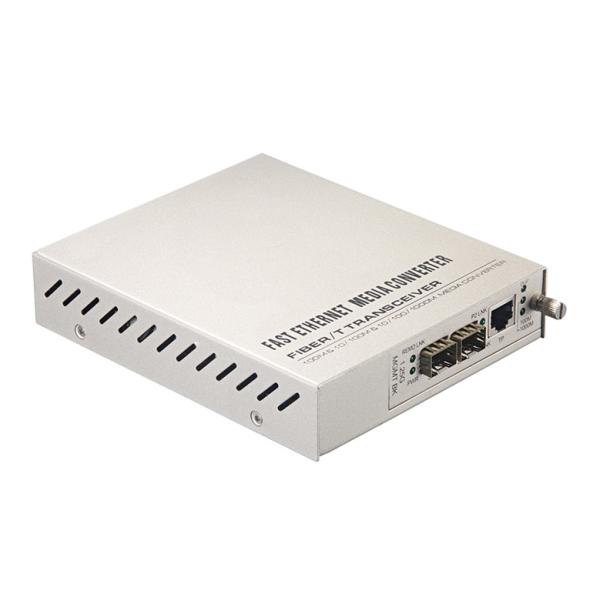

FR-6501R	1+1 Fiber Protection Converter Remote Standalone	2×1.25G SFP to 10/100/1000M Tx
